ZTMX Static Mixers
Pipeline mixing elements for flow homogenisation and representative sampling
Reliable Flow Homogenisation
Our static mixing elements are installed upstream of sampling points and measurement instruments to ensure the fluid stream is properly homogenised. In multi-phase flow, stratification and uneven distribution of water droplets can lead to unrepresentative samples and inaccurate measurements.
Static mixers solve this by creating controlled turbulence that distributes the dispersed phase (water) evenly across the pipe cross-section. With no moving parts, they require zero maintenance and introduce minimal pressure drop.
Product Range

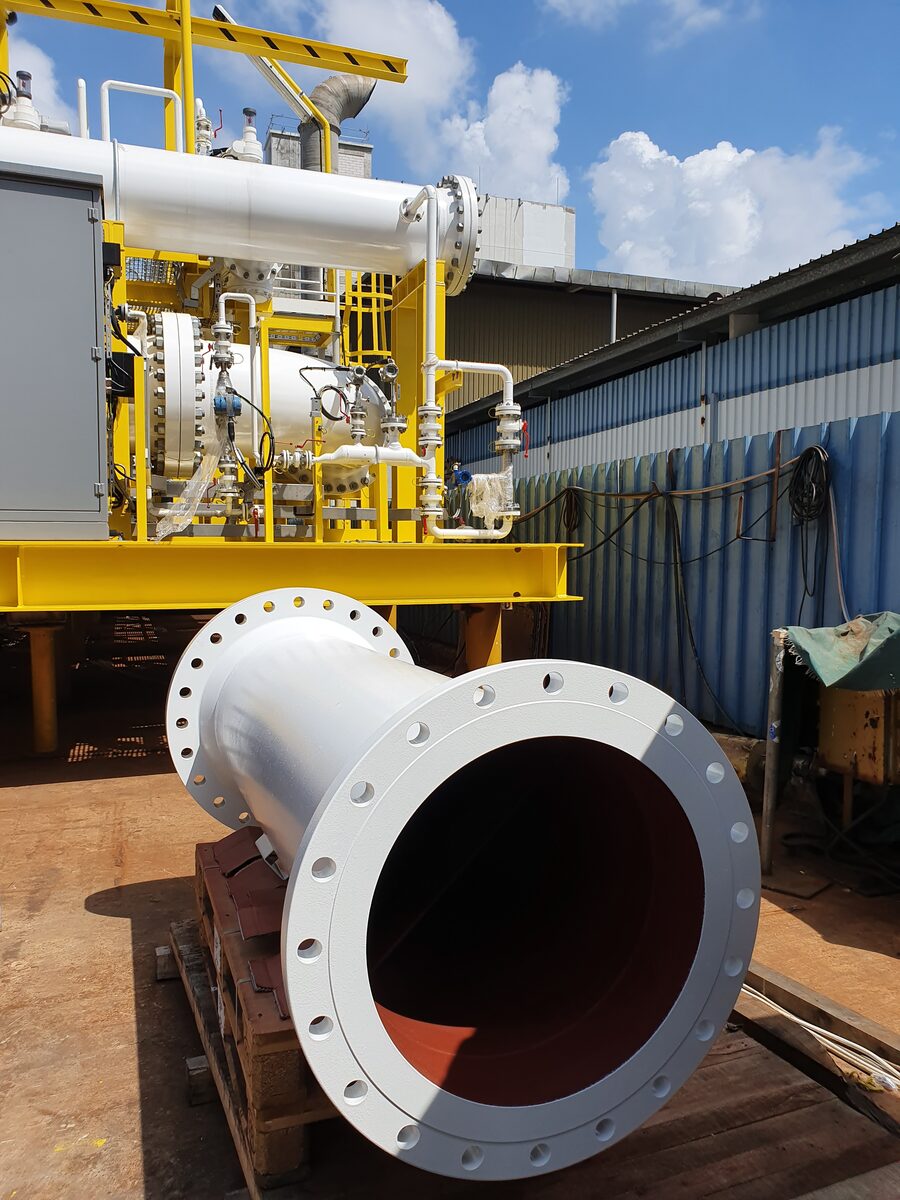

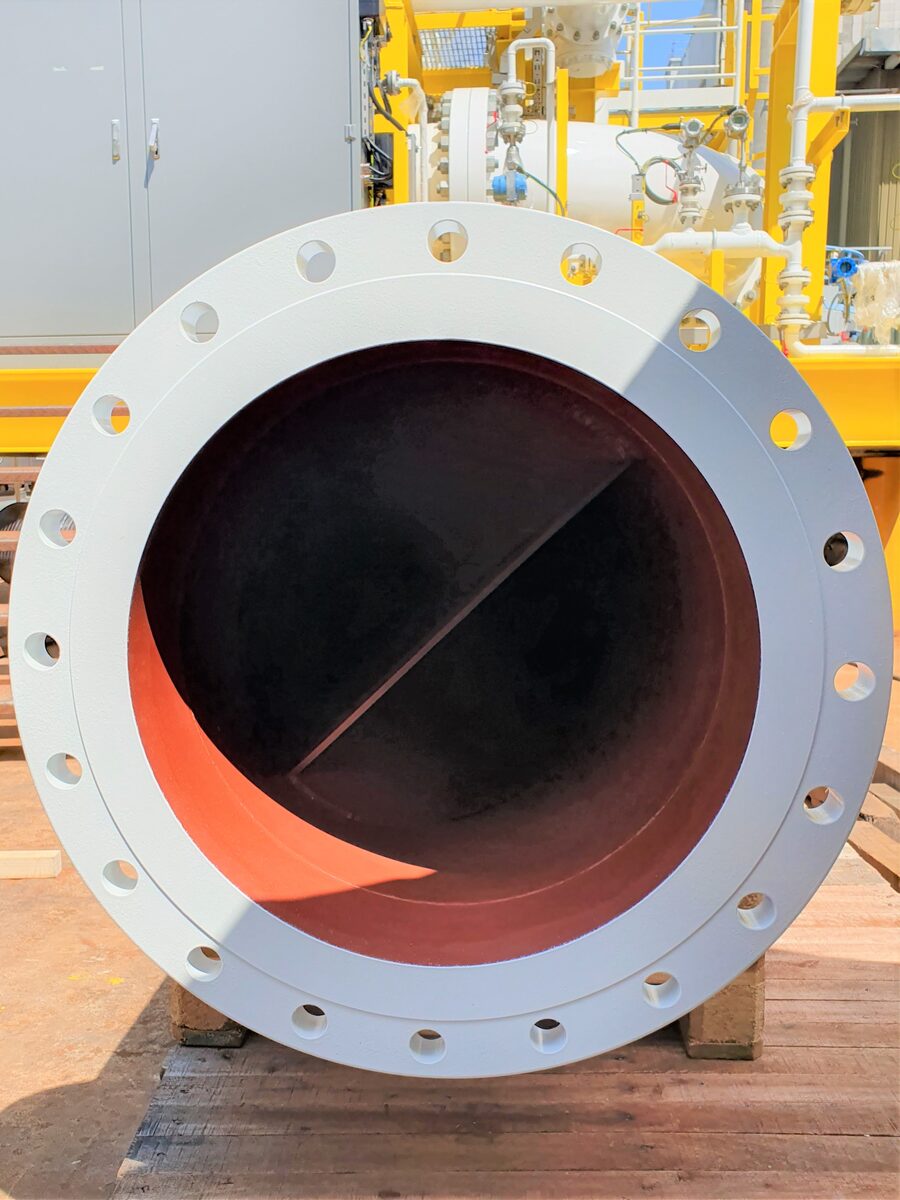

Zelentech ZTMX Static Mixer
ZTMX Series
Pre-assembled spool pieces with integrated mixing elements. Delivered ready to install with matching flanges. Ideal for new construction and metering skid applications.
- Factory-assembled with flanged connections
- Optimised mixing element arrangement
- Available with integrated sample probes
Key Features
No Moving Parts
Completely passive operation with zero maintenance requirements. No power supply, no consumables, no wear parts.
Low Pressure Drop
Engineered flow geometry provides effective mixing with minimal energy loss across the element.
Standards Compliance
Designed to meet ISO 3171 requirements for representative sampling of petroleum liquids in pipelines.
Custom Sizing
Available for pipe sizes from 2" to 24" with ANSI 150, 300, and 600 flange ratings.
Material Options
Carbon steel, 316L stainless steel, and duplex stainless steel to suit different service conditions.
Proven Design
Field-proven mixing performance validated across hundreds of installations worldwide.
Applications
Custody Transfer Metering
Upstream of automatic samplers in fiscal metering stations to ensure representative sampling per ISO 3171.
Pipeline Sampling
Conditioning multi-phase flow before sample probes in crude oil and refined product pipelines.
Watercut Measurement
Installed upstream of water cut analyzers to ensure homogeneous flow for accurate measurement readings.
Chemical Injection
Downstream of chemical injection points to ensure thorough mixing of additives into the process stream.
Specify Your ZTMX Static Mixer
Provide your pipe size, flow rate, and fluid properties and we will calculate the optimal mixer configuration including expected pressure drop.
