Water Detection in Marine Fuel Systems
Protect marine engines from water damage in HFO and MDO. Verify bunker quality at delivery. Monitor separator performance continuously.
The Challenge
Water in marine fuel oil is a persistent operational and commercial problem. It enters through condensation in storage tanks, poor bunker quality, and tank cleaning residue. The consequences of undetected water in fuel range from reduced engine efficiency to catastrophic fuel system damage.
Engine Damage
Water in heavy fuel oil (HFO) and marine diesel oil (MDO) causes fuel pump wear, injector erosion, and combustion chamber corrosion. Unplanned engine shutdowns at sea are dangerous and costly.
Bunker Quality
Bunkered fuel is a major cost for vessel operators. Water content above specification means the operator pays for water at fuel prices. Disputes over bunker quality are common and expensive to resolve.
Separator Performance
Centrifugal fuel oil separators in the engine room must remove water before the fuel reaches the engines. Without continuous monitoring, separator malfunction goes undetected until engine problems appear.
IMO Compliance
International Maritime Organization regulations and classification society requirements increasingly demand fuel quality documentation. Continuous measurement provides an auditable record.
How Zelentech Solves It
The ZT-100 Water In Oil Monitor installed on the fuel system provides continuous water content measurement in HFO and MDO. Typical installation points include the bunker line during fuel intake, the separator outlet to verify water removal, and the service tank outlet before the fuel enters the engine.
During bunkering, the instrument provides a real-time record of water content in the delivered fuel. If the bunkered fuel exceeds the agreed specification, the crew has immediate evidence — not a lab result that arrives days later.
On the separator outlet, continuous monitoring confirms the separator is removing water effectively. A rising water content trend indicates separator malfunction or overloading, giving the engine room crew time to respond before contaminated fuel reaches the engines.
Bunker Verification
Independent onboard measurement at the bunker manifold provides immediate evidence of delivered fuel quality.
Separator Monitoring
Continuous measurement on separator outlets confirms effective water removal and detects malfunction early.
Engine Room Ready
Compact, vibration-resistant, loop-powered. Designed for the space constraints and conditions of marine engine rooms.

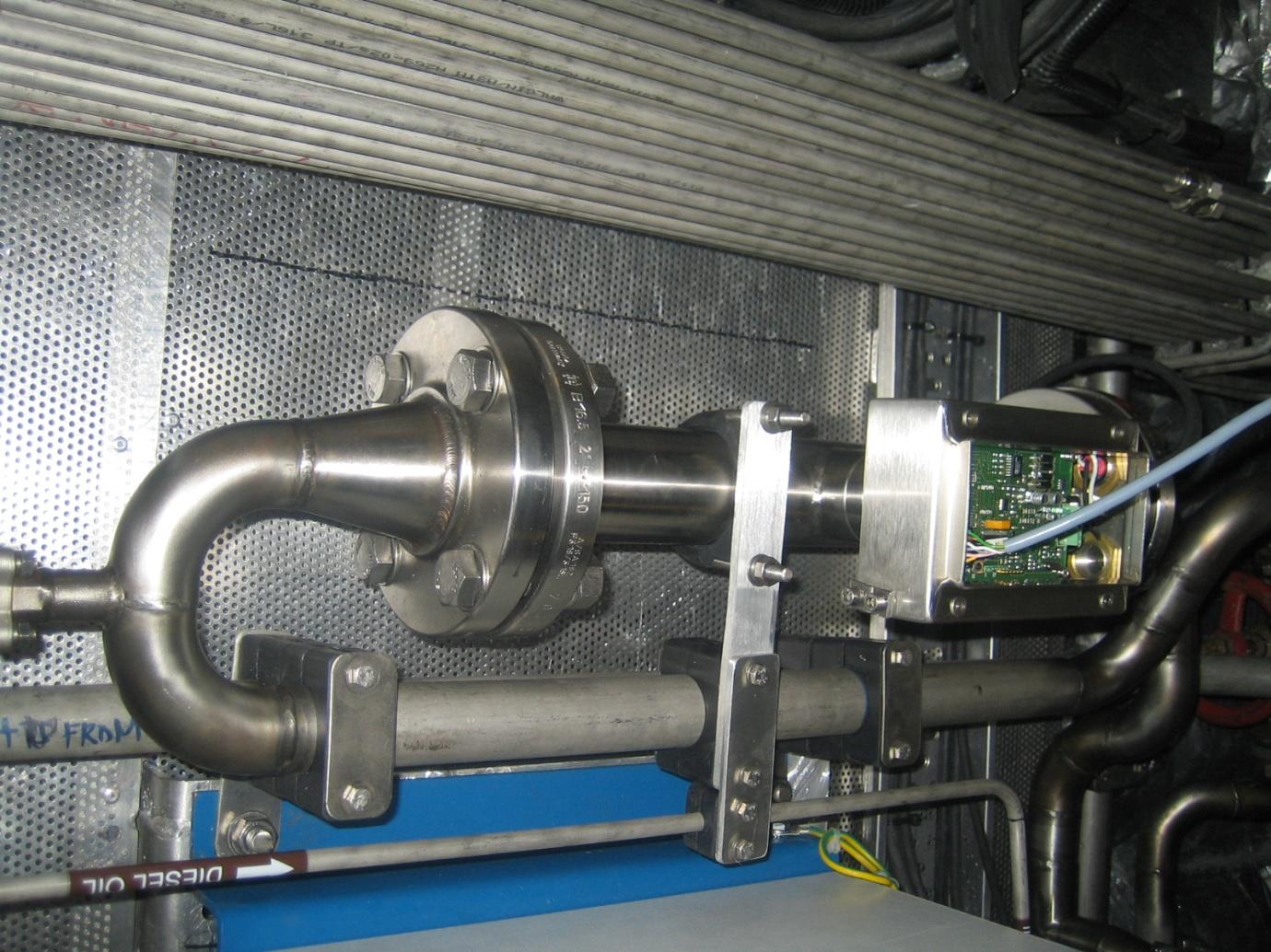

Australian Coast Guard — Diesel Fuel Monitoring
The ZT100 Water-In-Fuel monitor is installed directly on the diesel fuel line of Australian Coast Guard patrol vessels, continuously verifying fuel quality before it reaches the engines. Clean stainless-steel construction withstands the harsh marine environment while providing real-time water detection.
Key Specifications
| Medium | HFO, MDO, MGO, bunker fuel |
| Measurement | Total water content (dissolved + free + emulsified) |
| Sensitivity | From 0.01% water content |
| Response Time | 1 second |
| Power | 24 VDC, loop powered |
| Output | 4–20mA + HART |
| Installation | Bunker line, separator outlet, service tank outlet |
